M-S Motorcycles
ZEV M-S SERIES MOTORCYCLE
Sleek full fairing weather protection and sport bike handling, with a huge cargo carrying "tank". The ZEV M Series redefines the design and handling characteristics of motorcycles while giving a sport style bike the ability to have commuter and utility use.

ALL M-S BIKES SHARE THESE SPECIFICATIONS



  • Continuous motor power listed.
  • Motor Design - In wheel hub motor with oil cooling. 11.77 inches OD at the air gap.
  • Controller - 650 amp, regen, 3 speed touch button controls both amps and volts. Reverse function.
  • Front brake - right hand control, dual 260 mm discs, dual twin piston radial caliper
  • Rear brake - right foot control, single 220 mm disc, dual piston caliper.

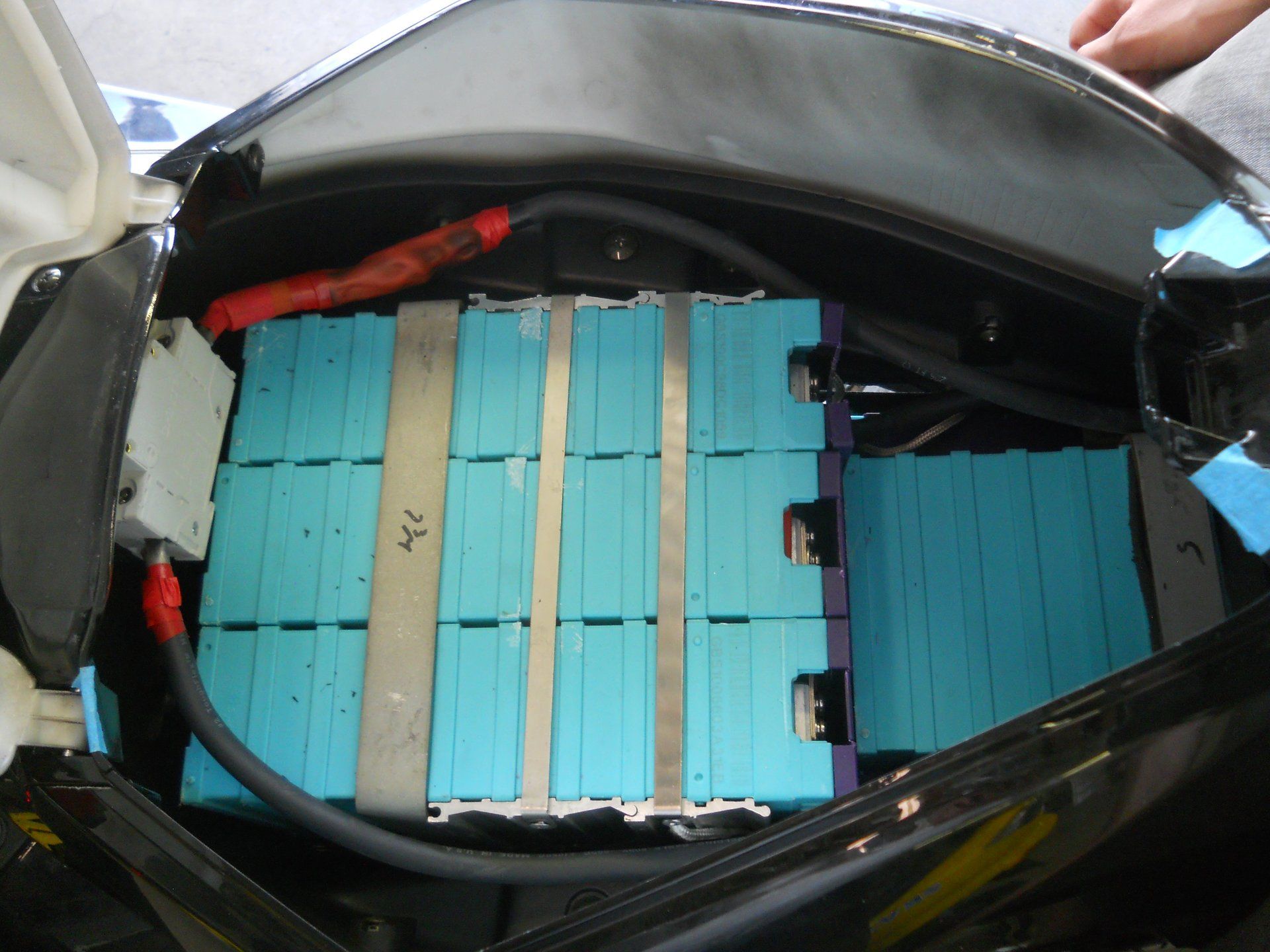

  • Battery type - 100 ah cells, LFMP.
  • Charging time - 4.5 hours on 110 v, 3.25 on 220 v
  • Charger - Switch between 220 and 110 volt input. Not built into the bike. 15 amps, 1580 watts.
  • Seat height - 29.9 inches
  • Wheelbase - 55.74 inches / 1416 mm
  • Wheel Size - 17 inch front and rear, 3.5 rim width
  • Tire Size - Front 110/70-17, Rear 130/70-17
  • Tire Speed Rating H, 130 mph / 210 kmh
  • Tire Load Rating front 467 lb, rear 584 lb
  • Every bike has both a side and a center stand.
  • Reverse mode.
  • 37 mm lower front fork tubes.
  • Street tires, rain oriented.



M-15 S

 $14,900


The all rounder bike for commuting and sport trips. The 15 has two econ modes and normal mode.




  • Range at 55 mph 140 miles
  • Range at 70 mph 80 miles
  • Max continuous speed 80 mph / 127 kmh
  • Max speed in normal mode 86 mph
  • Continuous power output 15 kw Normal mode
  • Motor Torque in normal mode - 280 Nm (206 lb ft) at 170 rpm measured at the air gap OD at 180 amps
  • Battery Capacity - 9.6 kWh
  • Vehicle weight - 470 lbs (owner can reduce with center stand delete)





M-11 S

$13,990



M-11-S For Europe, ZEV makes the motorcycle in a form compliant with the 125 cc equivalent rules.
